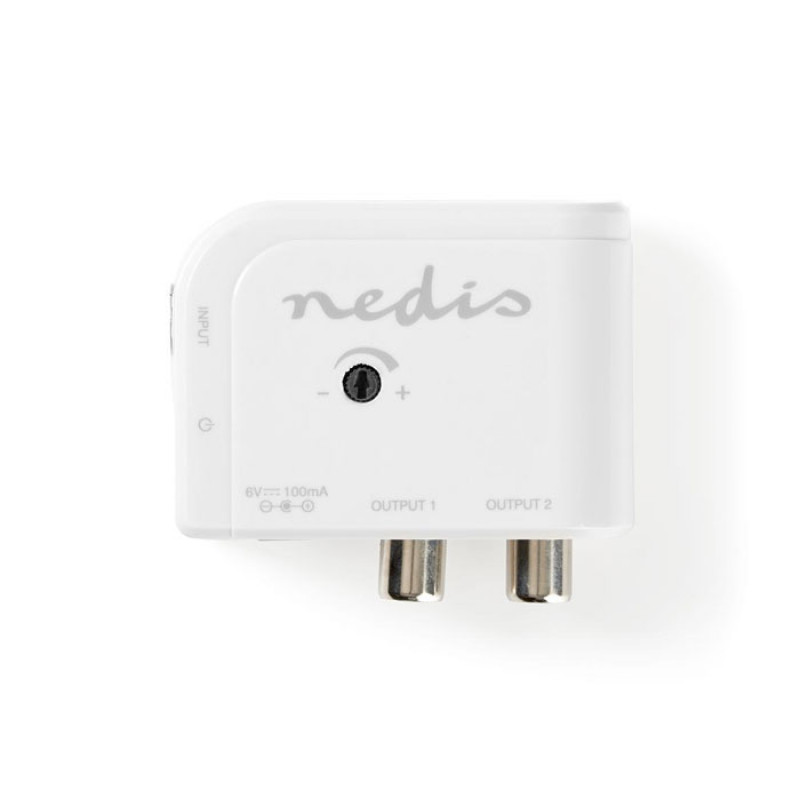

CATV Amplifier Max. 15 dB Gain 50 - 790 MHz 2 Outputs IEC
19.99€
- Brand: NEDIS
- Product Code: 233-1426
- SKU: SUN2331426
- Availability: 1-3 Days
CATV Amplifier Max. 15 dB Gain 50 - 790 MHz 2 Outputs IEC
This CATV amplifier with gain control offers two outputs. It provides ultra-clear TV signals, with a gain of 15 dB, when connected to your television set up.
- Ultra-clear TV reception and more reliable TV quality
- Gain control allows you to match the amplifier input to the source output
- Plug and play the IEC connector makes installation simple
- Appliance: Indoor
- Application: CATV
- Number of outputs: 2
- Number of inputs: 1
- Colour: White
- Connector type: IEC Male, IEC Female
- Noise figure: 5 dB
- Power plug: Euro / Type C (CEE 7/16)
- Gain: 15 dB
- Frequency range: 50 - 790 MHz
- Gain control: 0 - 12 dB
- Impedance: 75 Ohm
- Input voltage: 6 VDC
- Insertion loss: 8 dB
- Output level: 85 dBuV
- Power consumption in operating mode: 100 mA
Package contents:
- Amplifier
- Power adapter
- Installation material
